Azimut Fly 53

motoryacht

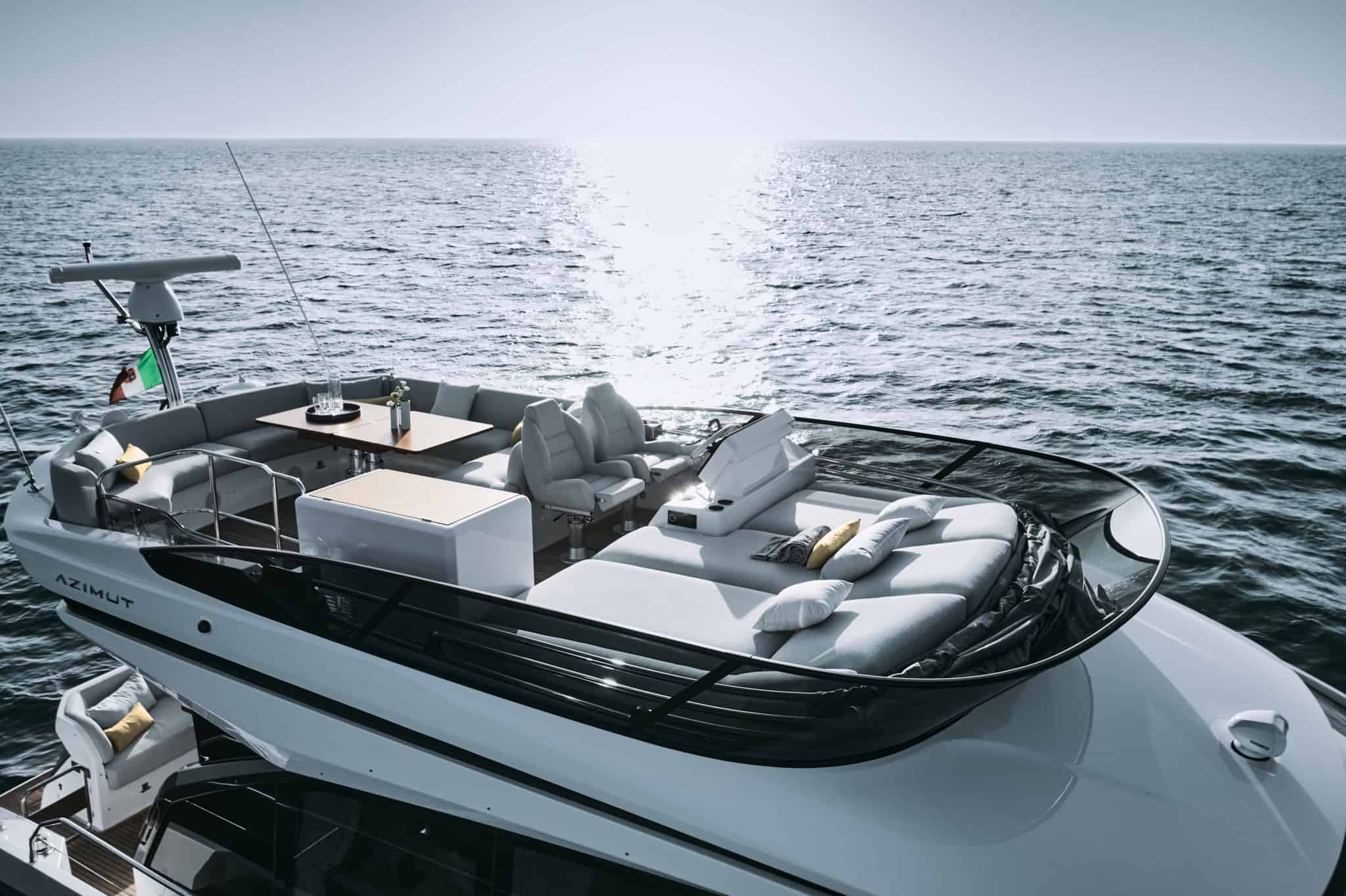

Flybridge

Overview

Draft

Air draft

21 ft

Gallery

01 / 28

Fly2021 generationcurrent

Dimensions

Published measurements and ranges

Hull length

Waterline

Air draft range

Displacement

Deadrise

Superstructure

Capacities

Fresh water

Holding

Layout options

Select a published arrangement

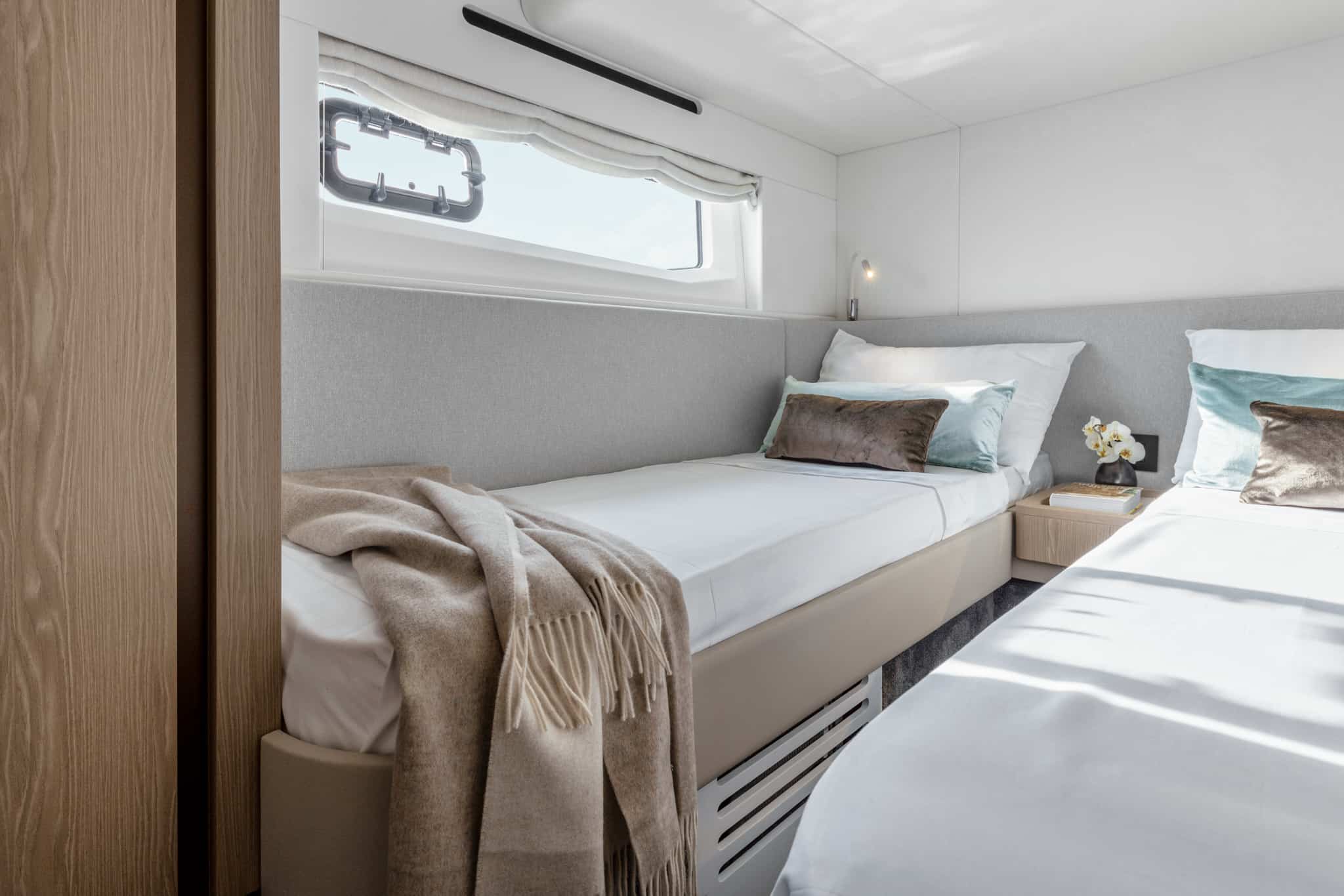

Guest cabins

Guest berths

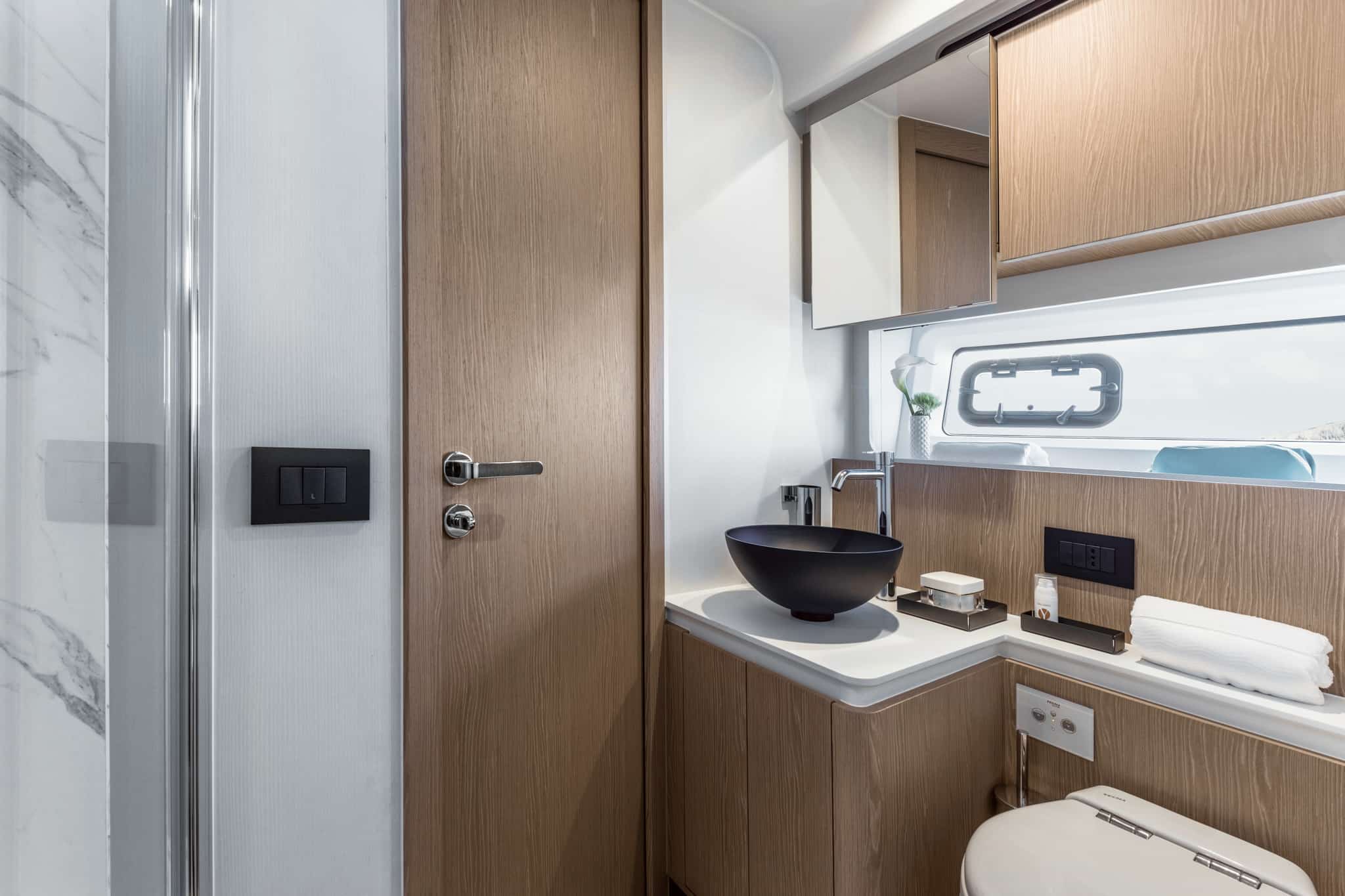

Heads

Crew cabins

Crew berths

Engine options

Published packages and performance data

Powerplant

2× Volvo Penta D11 IPS 950 725 hp

HP each

725 hp

diesel

Propulsion

IPS pods

Performance

Speed ranges and documented profiles

Cruise

26 kn

Top speed

31 kn

Range

Cruise

15.1 kn

Speed

15.1 kn

Range

281 nm

ISO 8666:2020 sea trial; witnessed by Lloyd's Register

Dimension variants

Current Manufacturer Page

LOA 55 ft 1 in · Beam 16 ft 3 in · Draft 3 ft 5 in

From Hull 212 Standard Arch

LOA 55 ft 1 in · Beam 16 ft 3 in · Draft 4 ft 8 in · Air 13 ft 2 in

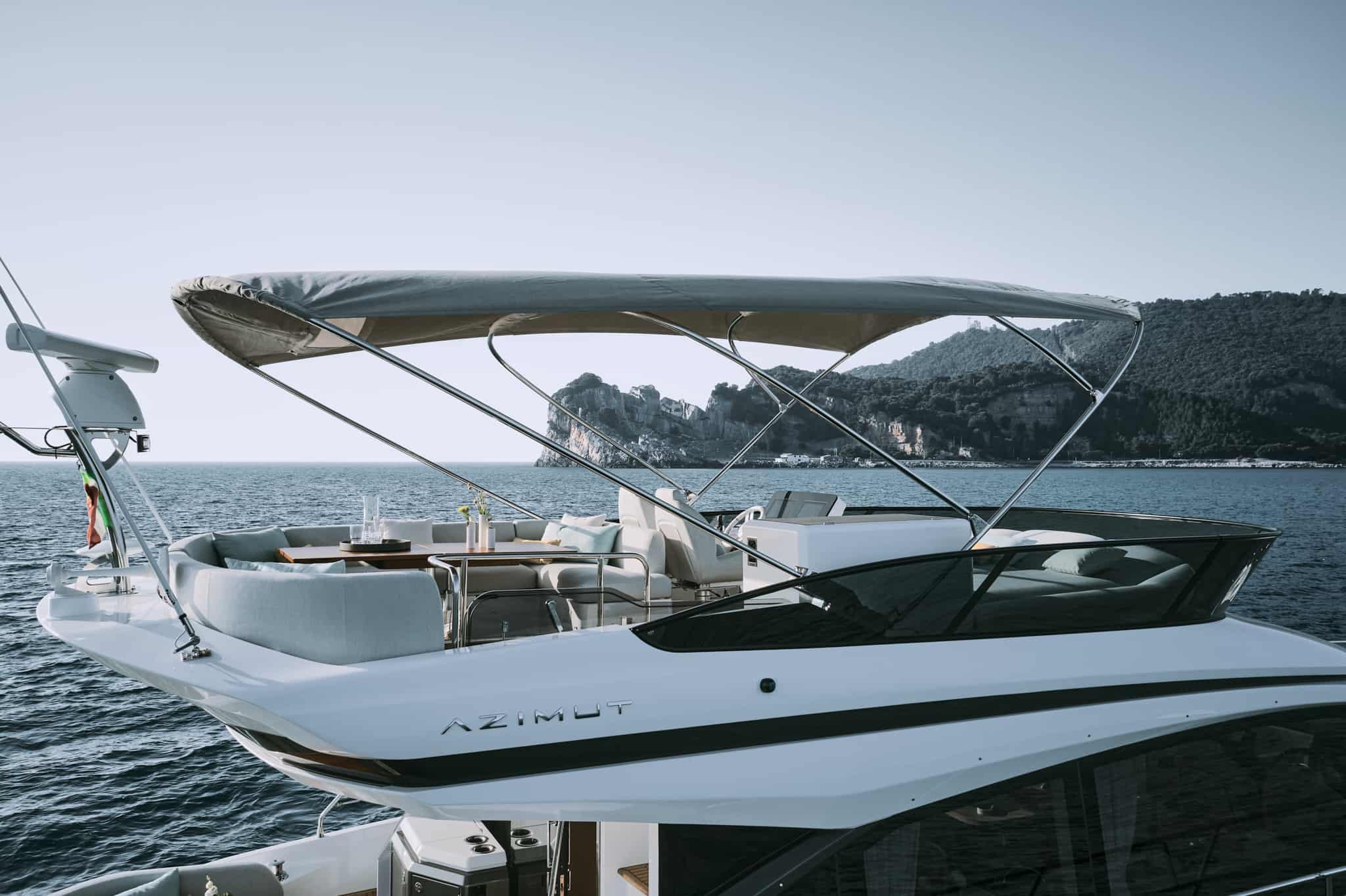

From Hull 212 Hardtop

LOA 55 ft 1 in · Beam 16 ft 3 in · Draft 4 ft 8 in · Air 19 ft

Fort Lauderdale fit

Air draft 21 ft. 17th Street closed ≈ 55 ft. SE 3rd Avenue ≈ 16 ft. Manufacturer numbers, not a survey.

Survey watch points

Draft and displacement publications disagree

medium risk · unresolved · dimensions

Current Azimut model page draft and full-load displacement disagree with brochure and hull-212 tech-spec draft/displacement figures. Cruise claims also disagree with a launch report. Keep unresolved.

Azimut Fly 53 opened manufacturer and launch sources do not share one draft or displacement basis.

The current model page (azimut-fly-53-model-page) lists 3.42 ft full-load props draft and 63,714 lb full-load displacement. The 2022 brochure (azimut-fly-53-brochure-2022) lists 4.67 ft draft and 66,138 lb. Hull 212 tech spec (azimut-fly-53-tech-spec-hull-212) lists keel/props drafts 3.67 / 4.67 ft and light/loaded 23.4 / 30 t. YachtBuyer launch coverage (yachtbuyer-azimut-53-launch-2021) also records a 27-knot cruise claim against manufacturer 26-knot cruise.

Canonical research keeps these in conflicting_fields and dimension variants. Verify the hull's published datum set before planning.

Confirm draft datum (keel vs props, load state) on the surveyed hull before under-keel planning.
Do not average manufacturer page, brochure, and hull-212 displacement figures.

Sources: azimut-fly-53-model-page, azimut-fly-53-brochure-2022, azimut-fly-53-tech-spec-hull-212, yachtbuyer-azimut-53-launch-2021

Can a Azimut Fly 53 clear Fort Lauderdale bridges?

Published air draft is 21 ft hardtop. 17th Street closed is about 55 ft. SE 3rd Avenue is about 16 ft. Manufacturer numbers, not a listing photo.

What draft does a Azimut Fly 53 need in Fort Lauderdale?

Manufacturer published draft is 3.42 ft. We keep 1 ft under-keel on the canal overlay. Victoria Park laterals are about 4.5 ft. Harbor Beach is the deep-water conversation.

Azimut Fly 53 LOA and beam versus canals?

55.08 ft LOA and 16.25 ft beam. Skinny isles such as Fiesta Way are limited by beam and fixed-bridge clearance.
