Cruisers Yachts 50 Cantius

  • express
  • Weekender

Overview

LOA

Beam

Draft

Air draft

Gallery

Cruisers Yachts 50 Cantius

01 / 16

Cantiussecond-generation 50 Cantiuscurrent

Dimensions

Published measurements and ranges

Dry weight

Capacities

Fuel

Fresh water

Holding

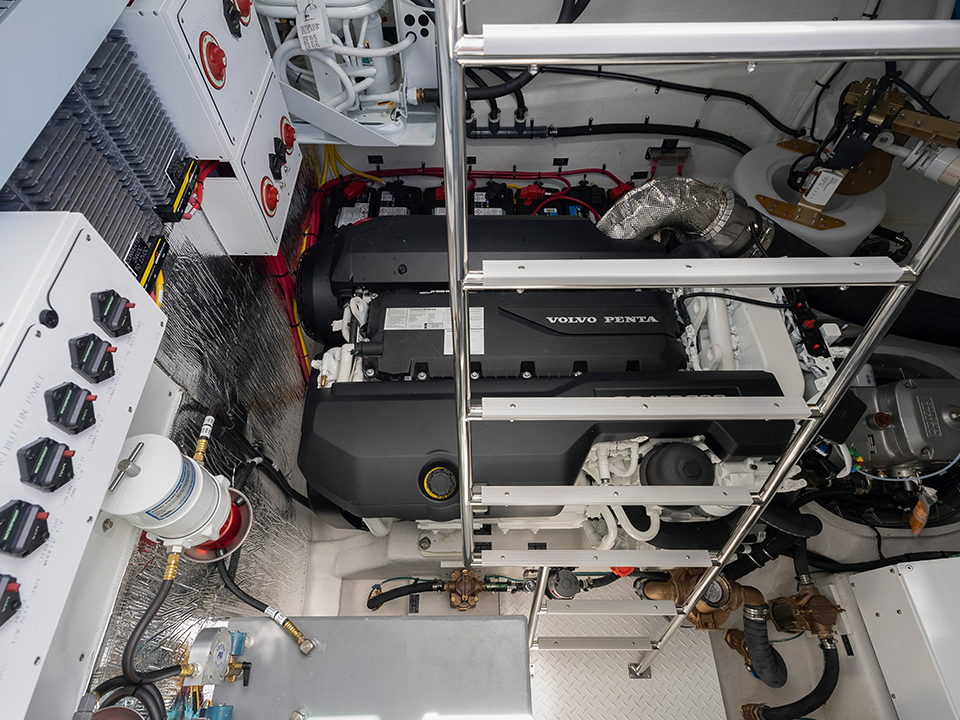

Engine options

Published packages and performance data

Powerplant

HP each

Fuel

Propulsion

Fort Lauderdale fit

Air draft 16 ft 1 in. 17th Street closed ≈ 55 ft. SE 3rd Avenue ≈ 16 ft. Manufacturer numbers, not a survey.

Survey watch points

Launch and current engine documentation differ

high risk · documented · documentation

A 2017 test documents twin IPS 600 power, while current OEM material documents a D8 IPS 700 option; confirm the applicable configuration for each yacht.

The evidence documents a model-year configuration change, not a fleet-wide propulsion defect. The current brochure is undated, and the automatic-caption claim is corroborative only, so the start year of IPS 700 availability remains limited to the documented current configuration.

  • Confirm the installed engine model and rating against the hull's build documentation; do not transfer the current IPS 700 option to a 2017 yacht.

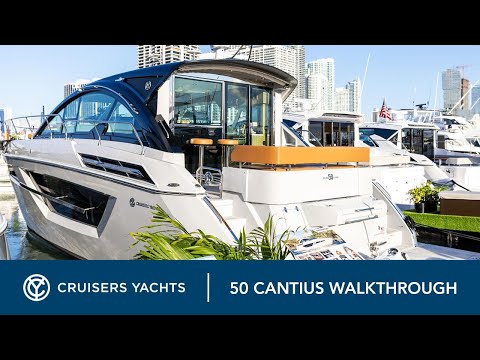

Sources: power-boating-50-cantius-test, cruisers-50-cantius-current-brochure, youtube-cruisers-50-cantius-walkthrough

Undated 50 Cantius brochure specification conflicts

medium risk · unresolved · documentation

An older undated OEM brochure disagrees with current OEM material on clearance, draft, fuel, and waste capacities; its model-year applicability is unresolved.

The catalog uses the current live page and current brochure values. The older brochure is undated, so these differences must not be converted into ranges or assigned to a model year without further documentation.

Sources: cruisers-50-cantius-model-page, cruisers-50-cantius-current-brochure, cruisers-50-cantius-stale-brochure

FAQ

Can a Cruisers Yachts 50 Cantius clear Fort Lauderdale bridges?

Published air draft is 16.08 ft hardtop. 17th Street closed is about 55 ft. SE 3rd Avenue is about 16 ft. Manufacturer numbers, not a listing photo.

What draft does a Cruisers Yachts 50 Cantius need in Fort Lauderdale?

Manufacturer published draft is 4.33 ft. We keep 1 ft under-keel on the canal overlay. Victoria Park laterals are about 4.5 ft. Harbor Beach is the deep-water conversation.

Cruisers Yachts 50 Cantius LOA and beam versus canals?

49.42 ft LOA and 15 ft beam. Skinny isles such as Fiesta Way are limited by beam and fixed-bridge clearance.
