Galeon 410 HTC

express
sedan
Weekender
Performance

Overview

Draft

Air draft

Gallery

01 / 16

Hardtopcurrent

Dimensions

Published measurements and ranges

Hull length

Dry weight

Displacement

Capacities

Fresh water

Holding

Layout options

Select a published arrangement

Guest cabins

Guest berths

Heads

Engine options

Published packages and performance data

Powerplant

HP each

Propulsion

Performance

Speed ranges and documented profiles

Cruise

Dimension variants

Us Oem 2025

Eu Oem

Boating Mag 2021

Fort Lauderdale fit

Air draft 15 ft 10 in. 17th Street closed ≈ 55 ft. SE 3rd Avenue ≈ 16 ft. Manufacturer numbers, not a survey.

Survey watch points

Beam figures disagree across US, EU, and Boating Mag

medium risk · unresolved · documentation

US OEM publishes beam 12'11"/3.7 m; EU OEM publishes 12.96 ft/3.95 m; Boating Mag 2021 test table lists 13'1". Values are not averaged into a range.

US and EU manufacturer pages disagree on standard beam, and Boating Mag’s 2021 table is a third figure. Canonical root beam_ft keeps the US OEM 12.92 ft (12'11") value and records the disagreement in conflicting_fields / dimension variants rather than inventing a midpoint range.

Confirm whether published beam is hull beam, including rubbing strakes, or a rounded conversion from meters.

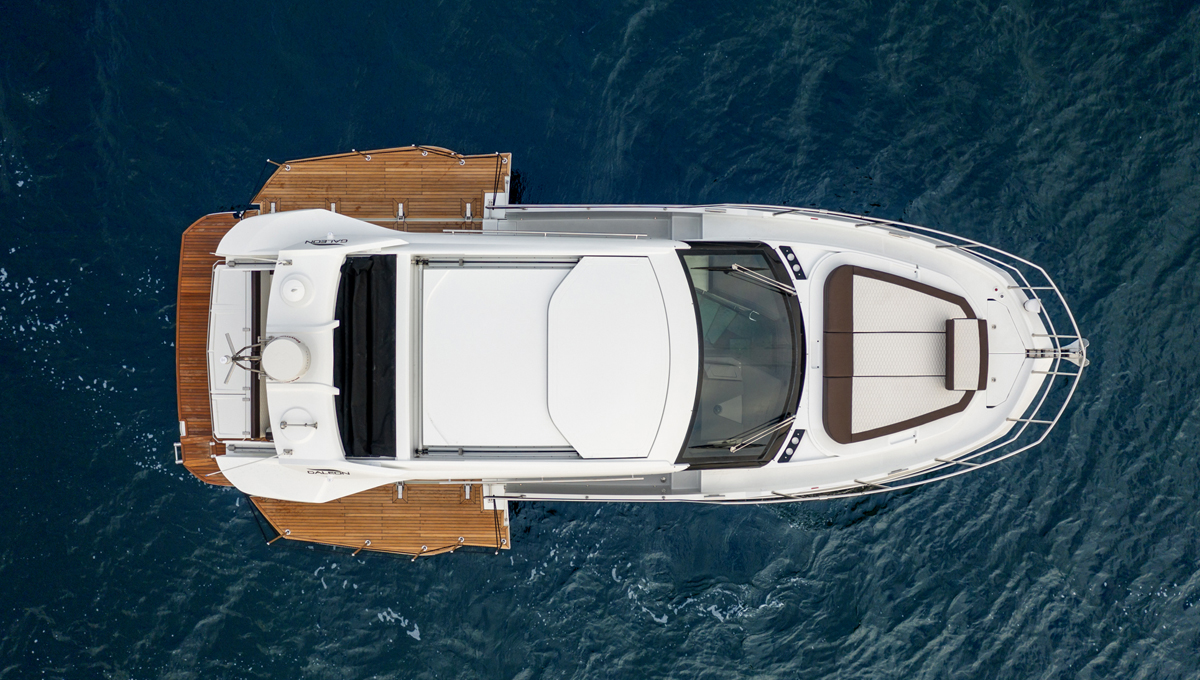

Do not treat Beach Mode / balcony-down widths (US 18'1"; EU opened balconies 21 ft) as the fixed root beam.

Sources: galeon-yachts-us-410-htc-model-page, galeon-yachts-us-410-htc-spec-sheet-2025, galeon-yachts-eu-410-htc-model-page, boating-mag-2021-galeon-410-htc-test

Black-water capacity US vs EU OEM disagreement

medium risk · unresolved · documentation

US OEM publishes black water 39 gal / 150 L; EU OEM JSON-LD publishes black water 125 L. Root holding capacity keeps the US figure.

Holding/black-water capacity is not converted into a range from the disagreeing OEM figures. Canonical holding_capacity_us_gal keeps the US 39 gal value with EU 125 L retained only as a documented conflict.

Confirm tank placard / builder options sheet on the specific hull and market (US vs EU).

Sources: galeon-yachts-us-410-htc-model-page, galeon-yachts-us-410-htc-spec-sheet-2025, galeon-yachts-eu-410-htc-model-page

Draft publications disagree (US max vs EU vs YachtBuyer)

medium risk · unresolved · documentation

US OEM labels draft (maximum) 3'9"/1.2 m; EU OEM lists draft 3.28 ft/1 m; YachtBuyer lists 0.9 m. Conservative catalog root keeps the US maximum.

Draft is condition-sensitive. Canonical draft_ft retains the US OEM maximum 3.75 ft. EU 1 m and YachtBuyer 0.9 m remain cited conflicts and are not averaged into a min/max range.

Verify draft datum (prop down, half-load, full-load) on the subject hull before bridge/canal planning.
Prefer manufacturer maximum draft for clearance planning when labels disagree.

Sources: galeon-yachts-us-410-htc-model-page, galeon-yachts-us-410-htc-spec-sheet-2025, galeon-yachts-eu-410-htc-model-page, yachtbuyer-galeon-410-htc-2021-review

Top-speed OEM claim vs sea-trial wording disagree

medium risk · unresolved · performance

EU OEM publishes max speed up to 29 knots; Yachting Magazine sea trial reports 30-plus knots and YachtBuyer lists 30 knots. Root top-speed fields left unpublished; claims kept only in performance profiles.

OEM marketing “up to 29 knots” and instrumented/editorial “30 / 30-plus knots” are not merged into a canonical min/max range. See performance_profiles.oem-eu-max and performance_profiles.yachting-trial-top.

Treat published top speed as condition-sensitive; retain engine, load, and sea-state notes from each profile.

Sources: galeon-yachts-eu-410-htc-model-page, yachting-magazine-on-board-galeon-410-htc, yachtbuyer-galeon-410-htc-2021-review

Can a Galeon 410 HTC clear Fort Lauderdale bridges?

Published air draft is 15.83 ft hardtop. 17th Street closed is about 55 ft. SE 3rd Avenue is about 16 ft. Manufacturer numbers, not a listing photo.

What draft does a Galeon 410 HTC need in Fort Lauderdale?

Manufacturer published draft is 3.75 ft. We keep 1 ft under-keel on the canal overlay. Victoria Park laterals are about 4.5 ft. Harbor Beach is the deep-water conversation.

Galeon 410 HTC LOA and beam versus canals?

41 ft LOA and 12.92 ft beam. Skinny isles such as Fiesta Way are limited by beam and fixed-bridge clearance.
