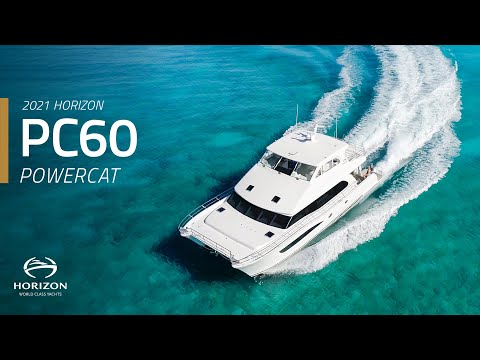

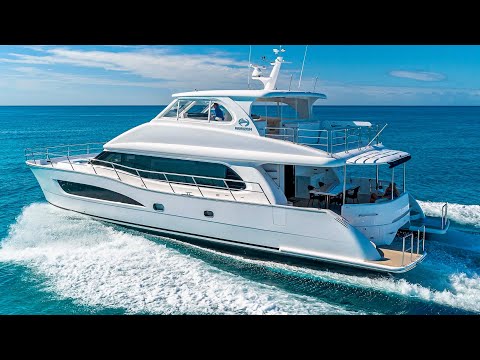

Horizon PC60

motoryacht
Flybridge
Long range

Overview

Draft

Air draft

22 ft

Gallery

01 / 05

PC Seriescurrent

Dimensions

Published measurements and ranges

Waterline

Displacement

Capacities

Fresh water

Layout options

Select a published arrangement

Guest cabins

Heads

Engine options

Published packages and performance data

Powerplant

2× Cummins QSM11 705 hp

HP each

705 hp

Performance

Speed ranges and documented profiles

Cruise

Top speed

Range

21.8 kn

Range

313 nm

72 gph

2,500 rpm

500 gal. fuel, 200 gal. water, 5 persons, 300 lb. gear

Fort Lauderdale fit

Air draft 22 ft. 17th Street closed ≈ 55 ft. SE 3rd Avenue ≈ 16 ft. Manufacturer numbers, not a survey.

Survey watch points

Builder and Americas distributor specs disagree

medium risk · unresolved · documentation

Horizon manufacturer page/brochure half-load displacement and fresh water disagree with Horizon Power Catamarans distributor figures. Draft also conflicts with YachtBuyer. Guest cabin count is 3 on manufacturer/YachtBuyer vs four-stateroom on the distributor page.

Horizon PC60 manufacturer publications and the Americas distributor page disagree on key published specs.

Horizon's model page (horizon-pc60-model-page) and PC Series brochure (horizon-pc-series-2025-brochure) list 88,383 lb half-load displacement and 250 US gal fresh water with 4' 9" (1.46 m) half-load draft. Horizon Power Catamarans (horizon-powercatamarans-pc60-page) lists 83,467 lb half-load displacement and 300 US gal fresh water.

YachtBuyer (yachtbuyer-pc60-aquaholic-2025) lists draft 1.66 m, and the 2013 Power & Motoryacht early test (power-and-motoryacht-2013-pc60-test) lists draft 4' 0" and water 400 gal.

Guest cabin count also conflicts: manufacturer SPEC strip and YachtBuyer Key Facts publish 3 guest cabins (horizon-pc60-model-page, yachtbuyer-pc60-aquaholic-2025), while the Americas distributor page describes a four-stateroom layout (horizon-powercatamarans-pc60-page). No manufacturer layout_options entry documents a 4-cabin configuration.

Canonical research publishes manufacturer SPEC 3 for both guest_cabins_min and guest_cabins_max (not a conflict-as-range), keeps the 3-vs-4 disagreement under conflicting_fields, and does not average the disagreeing values.

Confirm half-load displacement and fresh-water tankage from builder paperwork for the surveyed hull and market.
Confirm draft datum (half load vs prop tip clearance) and measure if bridge/marina clearance depends on it.
Confirm as-built guest stateroom count from GA drawings for the surveyed hull and market edition.
Do not average manufacturer and distributor figures into a range.

Sources: horizon-pc60-model-page, horizon-pc-series-2025-brochure, horizon-powercatamarans-pc60-page, yachtbuyer-pc60-aquaholic-2025, power-and-motoryacht-2013-pc60-test

Can a Horizon PC60 clear Fort Lauderdale bridges?

Published air draft is 22 ft hardtop. 17th Street closed is about 55 ft. SE 3rd Avenue is about 16 ft. Manufacturer numbers, not a listing photo.

What draft does a Horizon PC60 need in Fort Lauderdale?

Manufacturer published draft is 4.75 ft. We keep 1 ft under-keel on the canal overlay. Victoria Park laterals are about 4.5 ft. Harbor Beach is the deep-water conversation.

Horizon PC60 LOA and beam versus canals?

61.58 ft LOA and 24.5 ft beam. Skinny isles such as Fiesta Way are limited by beam and fixed-bridge clearance.
